Jiecang desk control

This documentation details the Jiecang hardware components supported for integration with the Humly Booking Device.

Supported models

Power source: Depending on the specific Jiecang desk engine model, the Humly Booking Device may require either a 5V3A power adapter or Power over Ethernet (PoE) for operation. Certain Jiecang desk engines support direct power delivery to the Humly Booking Device.

JCB35NH1
JCB35NH2
JCB35NH4
JCB35NS1
JCB35NS2
JCB36M
JCB36M4
JCB36N1
JCB36N2
JCB36N3
JCB36N4
JCB36NE2
JCB36NE2AP
JCB35M1
JCB35M11A/B/C
JCB35M12B/C

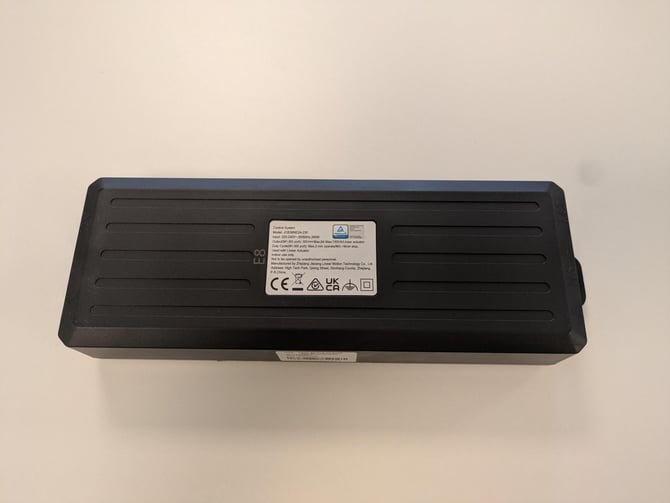

To identify the control box type, refer to the label located on the back of the unit.

Required components for Jiecang control box integration with the Humly Booking Device

  • Humly Booking Device
    Article number: HUM1020

  • PoE and Desk Control for Booking Device
    Article number: HUM1020935

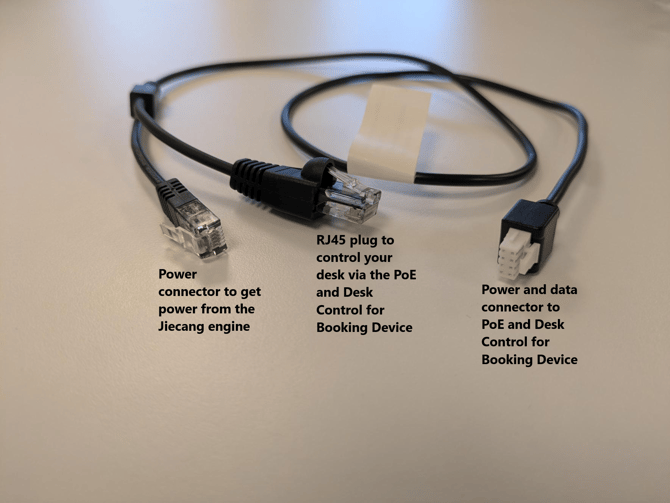

  • Jiecang integration cable
    Article number: HUM1020815

  • 5V 3A power adapter (for installations where the Humly Booking Device is not powered via PoE)
    Article number: HUM1020915



Installation instructions

1. Setup Humly Booking Device with PoE and Desk Control for Booking Device by connecting data connector to Humly Booking Device.

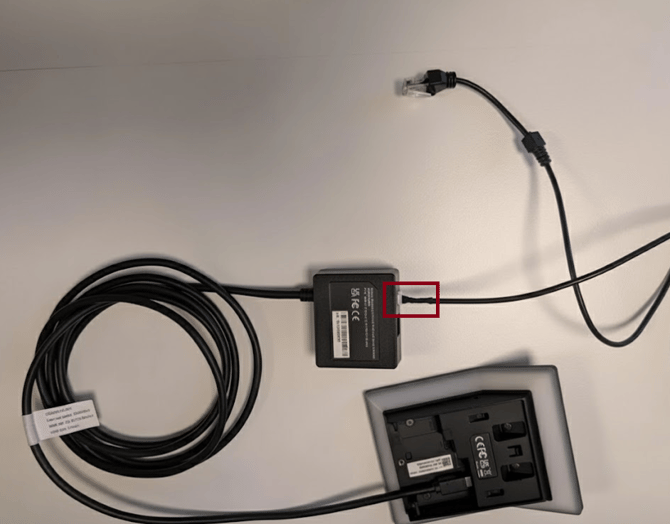

2. Connect the Jiecang integration cable to the PoE and Desk Control for Booking Device.

3. Connect power source to the Humly Booking device. Choose either 5V3A power adapter, PoE or power connecter from Jiecang engine.

4 Remove the sticker on the backside of PoE and Desk Control for Booking Device and mount the unit under the desk.

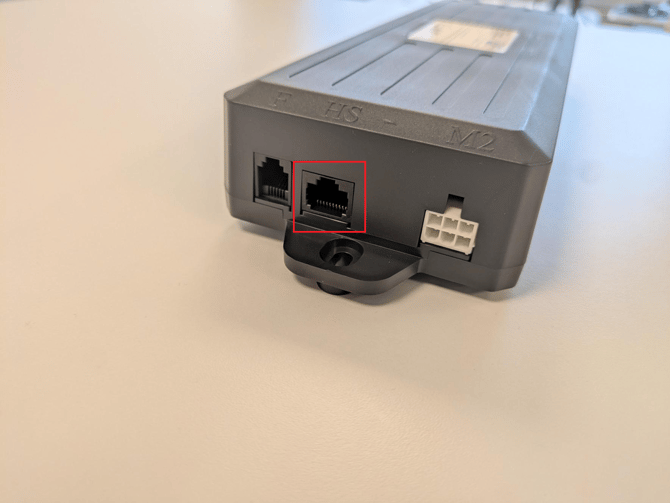

5. Connect the RJ45 plug from the Jiecang integration cable to the RJ45 port in the Jiecang engine.

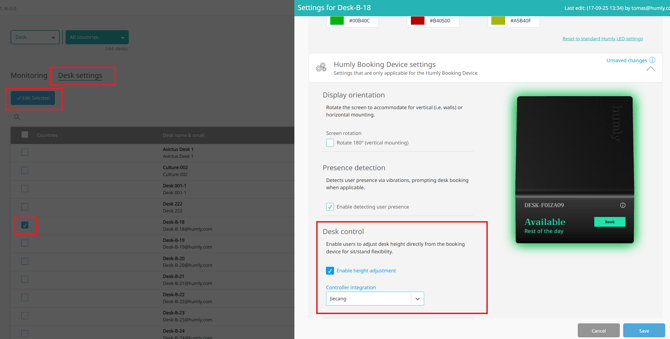

6. Enable desk setting in Humly Control Panel to allow support for Jiecang engine. Press Save.
