Linak desk control

This documentation details the Linak hardware components supported for integration with the Humly Booking Device.

Supported models

Model Description
Linak electric legs - Type IC Desk legs featuring an integrated control box, enabling height data communication with the Humly Booking Device.
Linak control box - Type CBD6

Standalone control box supporting height data communication with the Humly Booking Device. Requires connection to compatible Linak desk legs.

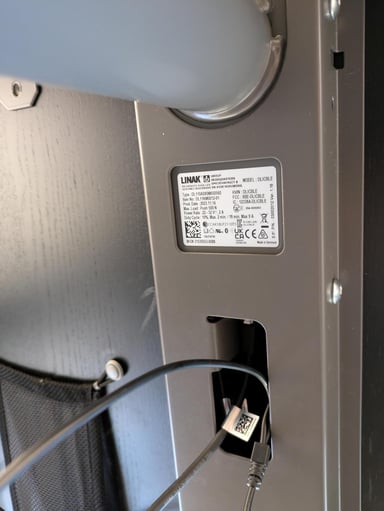

To identify the control box type, refer to the label located on the back of the unit.

Media_linak_model

Required components for integrating the Linak control box with the Humly Booking Device

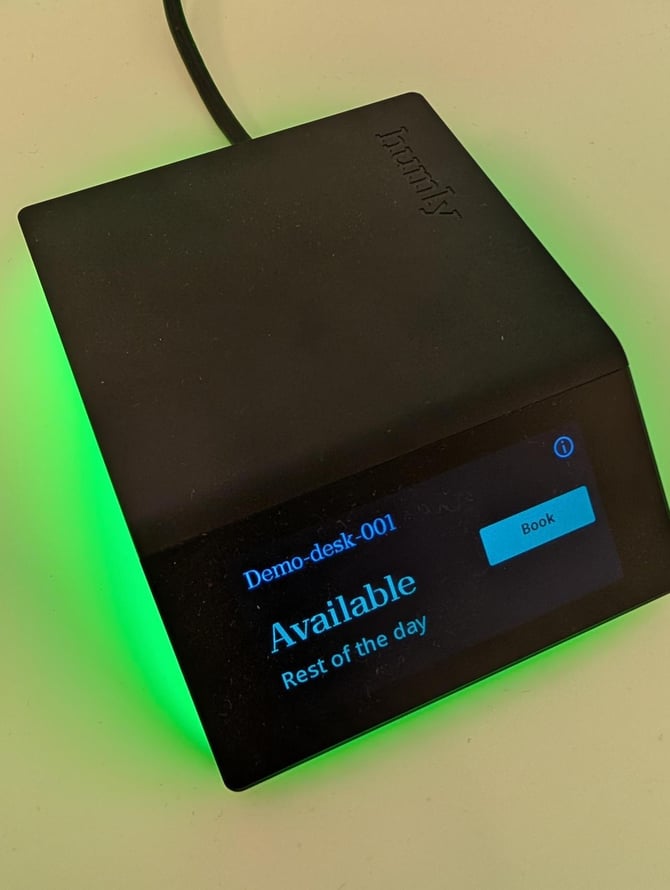

  • Humly Booking Device
    Article number: HUM1020

  • PoE and Desk Control for Booking Device
    Article number: HUM1020935

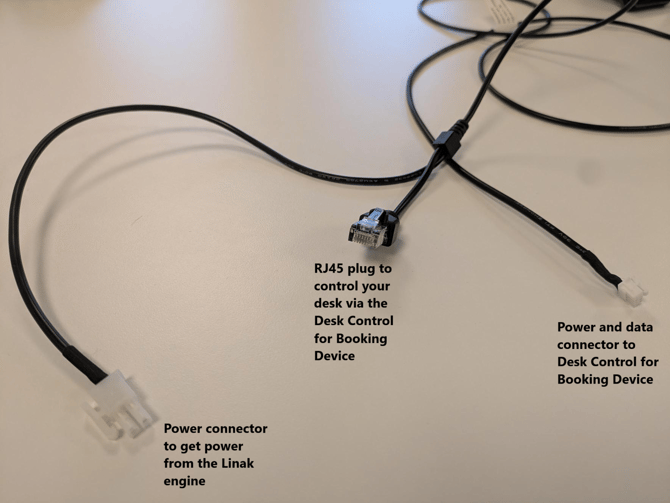

  • Linak integration cable
    Article number: HUM1020965

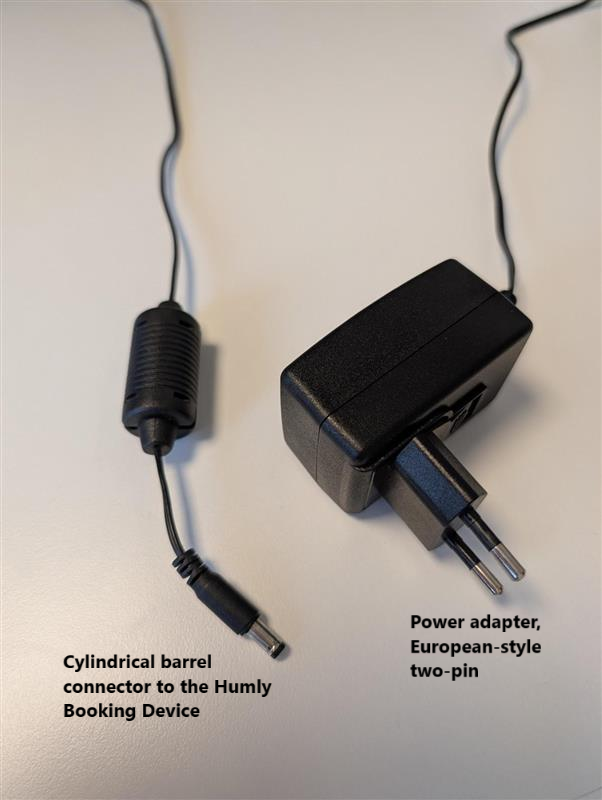

  • 5V 3A power adapter (for installations where the Humly Booking Device is not powered via PoE)
    Article number: HUM1020915






Installation instructions

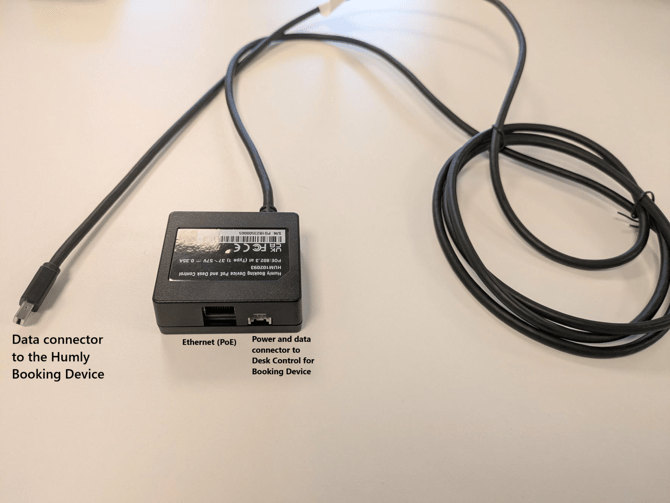

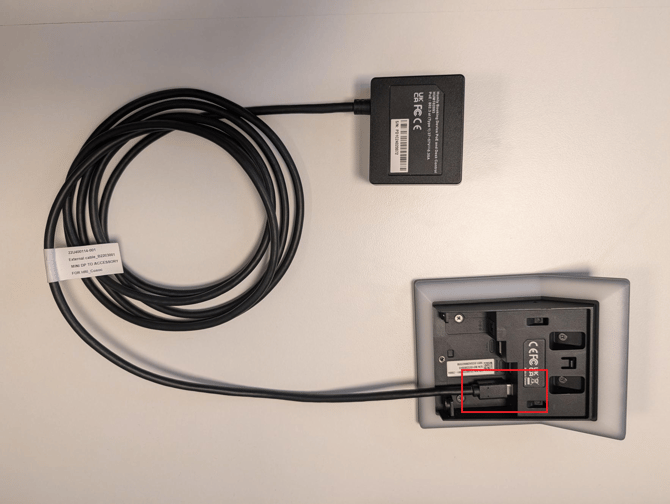

1. Setup Humly Booking Device with PoE and Desk Control for Booking Device by connecting data connector to Humly Booking Device.

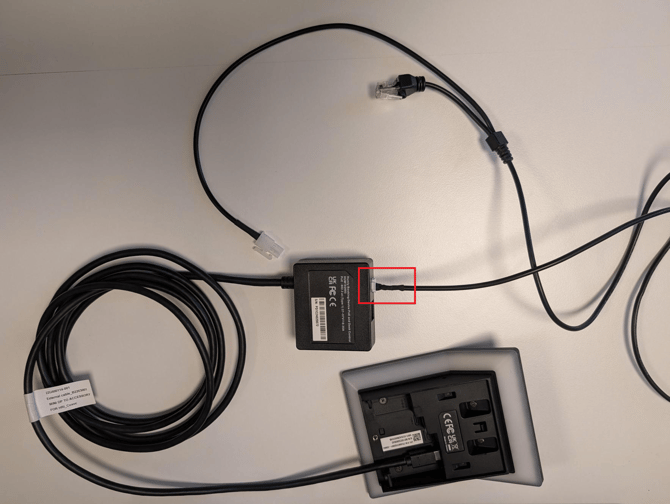

2. Connect the Linak integration cable to the PoE and Desk Control for Booking Device.

3. Connect power source to the Humly Booking device. Choose either 5V3A power adapter, PoE or power connecter from Linak engine.

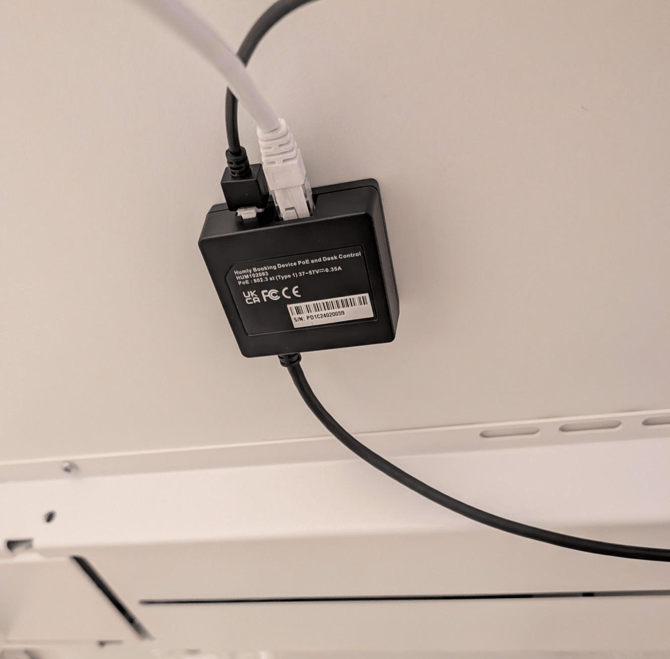

4 Remove the sticker on the backside of PoE and Desk Control for Booking Device and mount the unit under the desk.

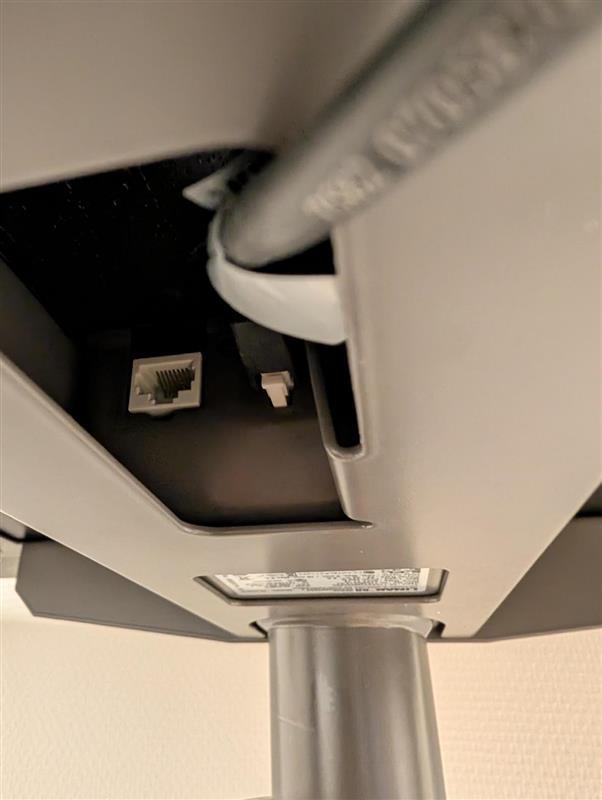

5. Connect the RJ45 plug from the Linak integration cable to the RJ45 port in the Linak engine.

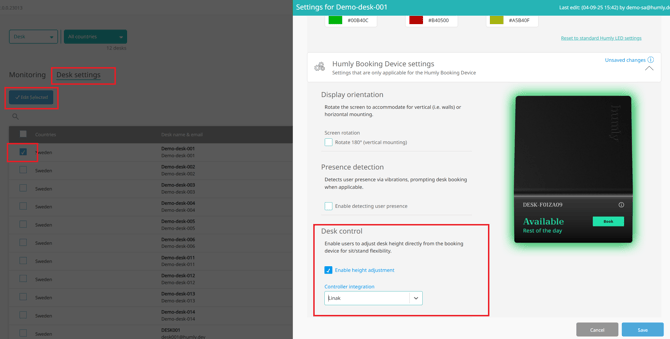

6. Enable room setting in Humly Control Panel to allow support for Linak engine. Press Save.
