Logicdata desk control

Logicdata desk control

This documentation details the Logicdata hardware components supported for integration with the Humly Booking Device.

Supported models

Model DIN Converter adapter
Smart Neo 2G Not needed
Smart Neo 3G Needed

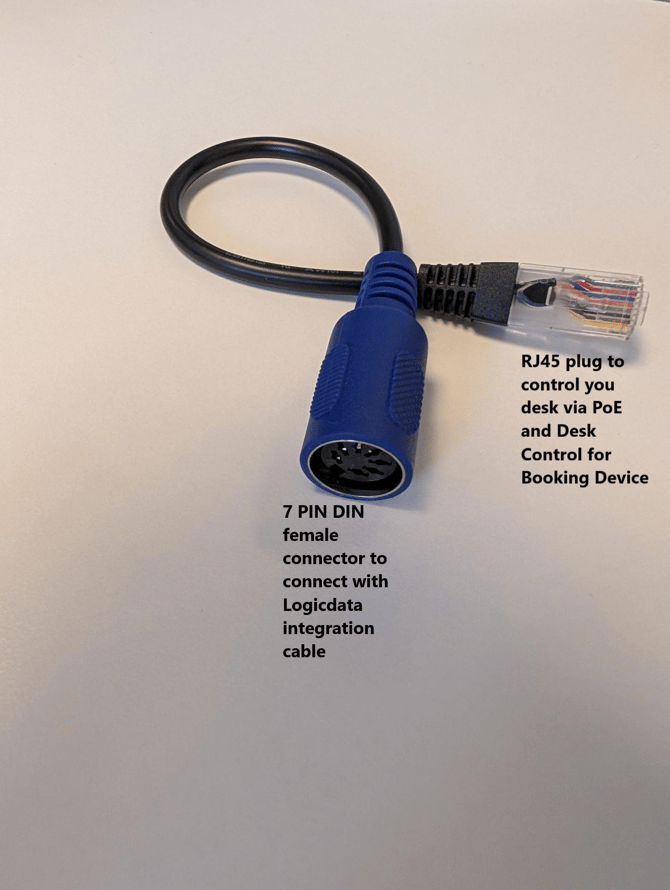

For the Smart Neo 3G model, a DIN Converter adapter is required. This DIN cable enables connectivity between the Logicdata CB control engine, the PoE and Desk Control for Booking Device, and the Logicdata integration cable.

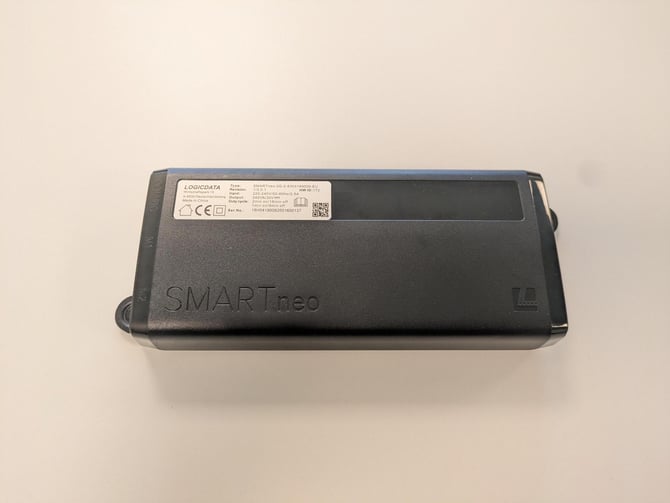

To identify the control box type, refer to the label located on the back of the unit.

Required components for Logicdata control box integration with the Humly Booking Device

  • Humly Booking Device
    Article number: HUM1020

  • PoE and Desk Control for Booking Device
    Article number: HUM1020935

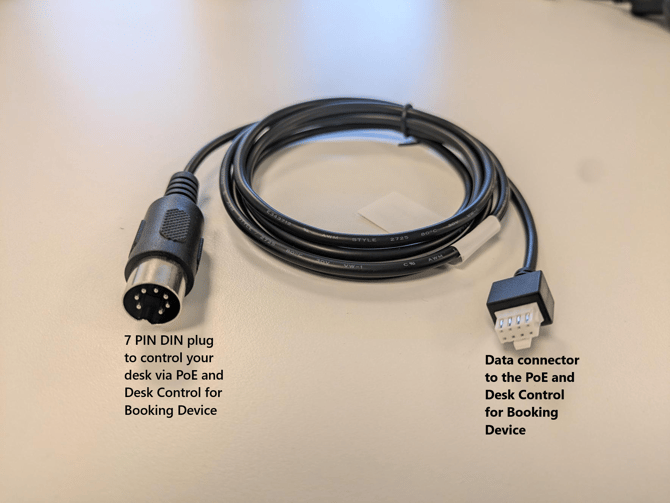

  • Logicdata integration cable
    Article number: HUM1020985

  • Logicdata Smart Neo 3G need an additional DIN Logicdata adapter. (Not provided by Humly)

  • 5V 3A power adapter (for installations where the Humly Booking Device is not powered via PoE)
    Article number: HUM1020915



Installation instructions

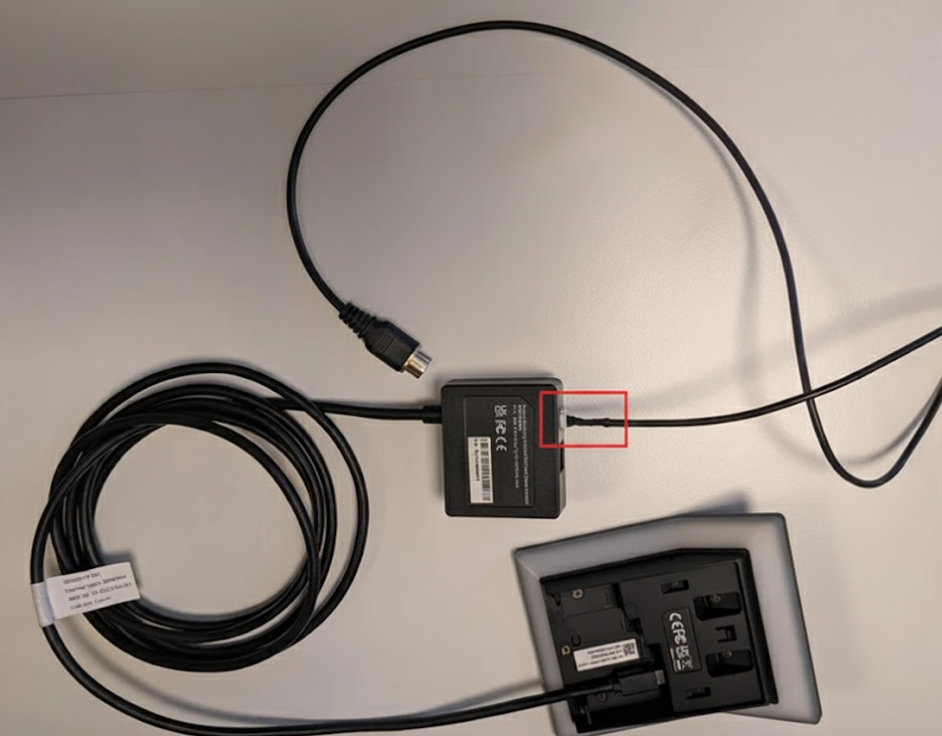

1. Setup Humly Booking Device with PoE and Desk Control for Booking Device by connecting data connector to Humly Booking Device.

2. Connect the Logicdata integration cable to the PoE and Desk Control for Booking Device.

3. Connect power source to the Humly Booking device. Choose either 5V3A power adapter, PoE or power connecter from Jiecang engine.

4 Remove the sticker on the backside of PoE and Desk Control for Booking Device and mount the unit under the desk.

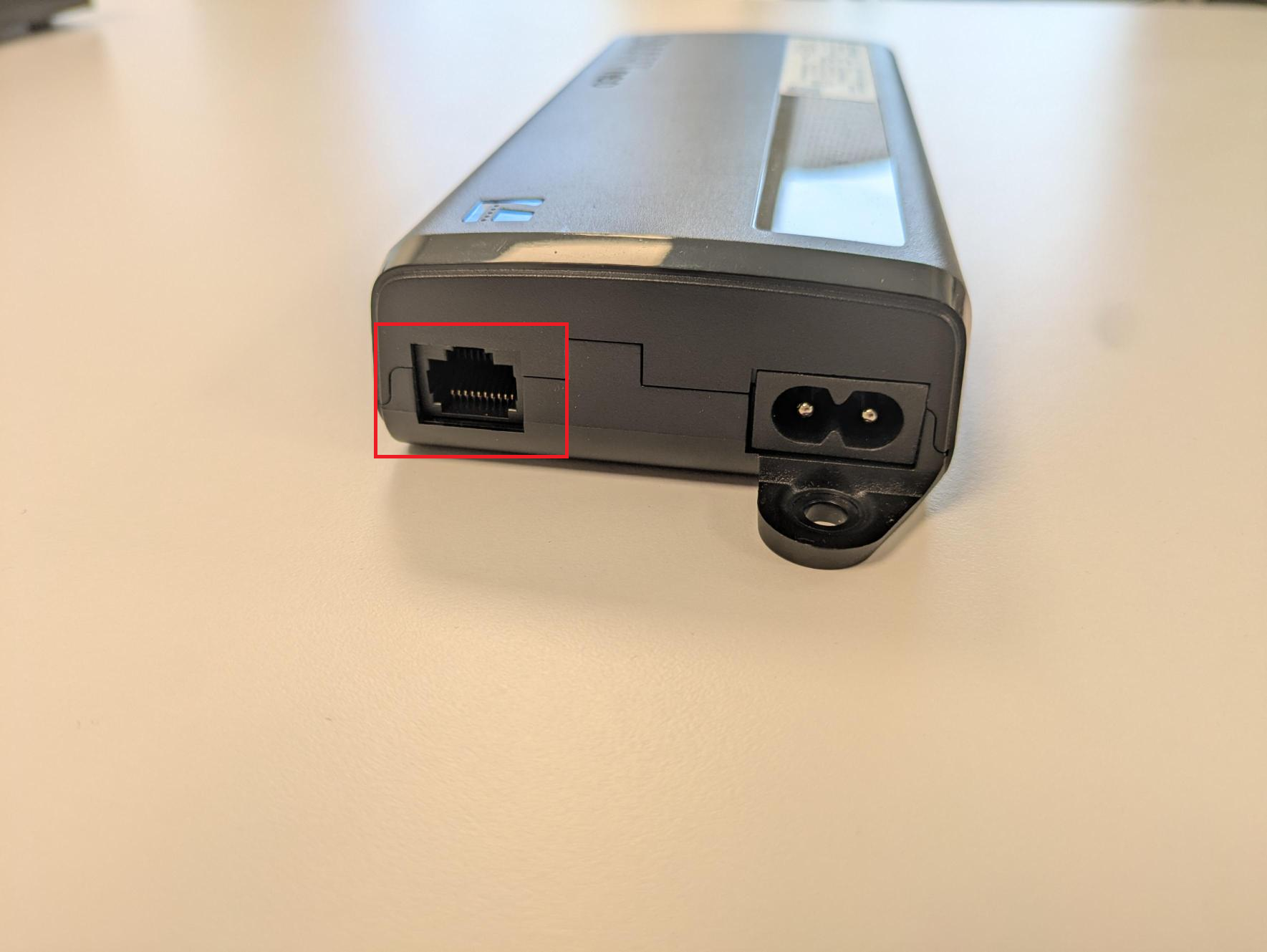

5. Connect the 7 PIN DIN plug from the Logicdata integration cable to the 7 PIN DIN port in the Logicdata engine. If you are using Smart Neo 3G engine then use the 7 PIN DIN adapter and connect RJ45 to the port in the Logicdata engine.

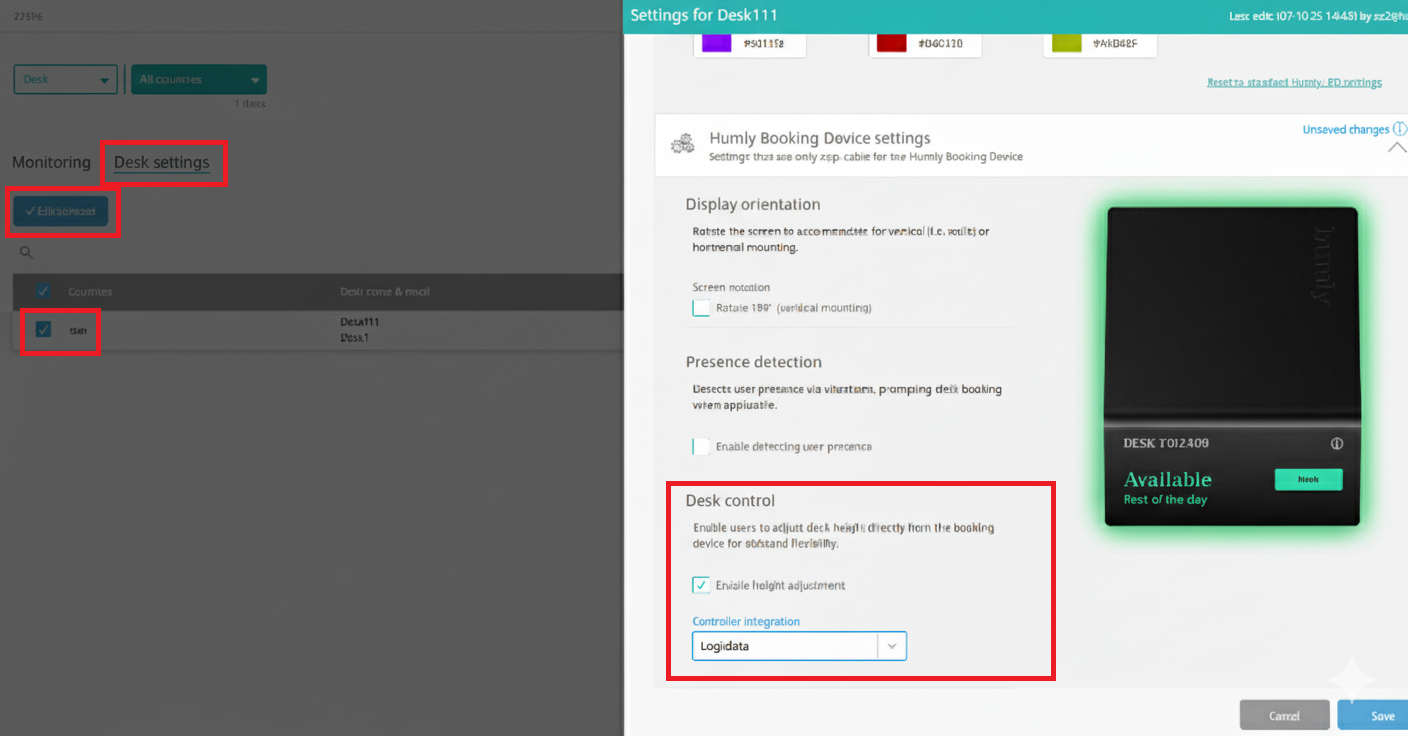

6. Enable desk room setting in Humly Control Panel to allow support for Logicdata engine. Press Save.
